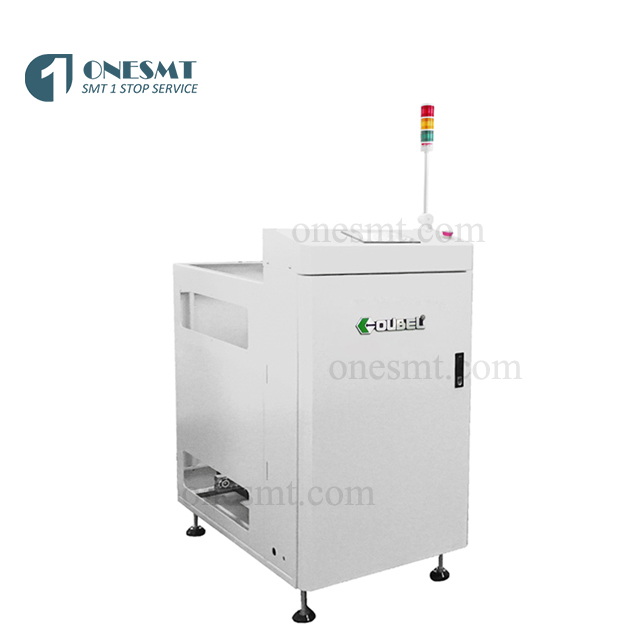

Automatic PCB elevator

Automatic PCB elevator

Automatic PCB elevator

KIC temperature testerPCB Telescopic Conveyor

Automatic PCB elevator is used to adjust the height direction of the circuit board to different paths.

Model: OB-LC330
Brand: OUBEL
Delivery Time: 4-7 working days

Add to Wishlist
Compare
分类： , 标签： , , , , , , , , , , , , , , , , ,

描述

Automatic PCB elevator

Features

1.PLC+LED touch screen control, easy to operate.

2.Full closed design ensures safety level of operation.

3.Maintenance window is designed to facilitate machine maintenance.

4.Smooth and precise width adjustment (leadscrew).

5.Smooth and accurate lift (brake motor).

6.Minimize the transmission gap between conveyors.

7.Height can be customized.

8.With SMEMA signal.



Specifications

ModelOB-LC330OB-LC330A
Dimensions535*920*(H)mm610*1050*(H)mm
PCB size50*50-460*330mm50*50-530*460mm
Belt typeRound belt or flat belt (optional)
Power sourceAC 1P 110V/220V 50/60HZ
Conveyor directionL-R or R-L (optional)
WeightApprox.140KGSApprox.200KGS
