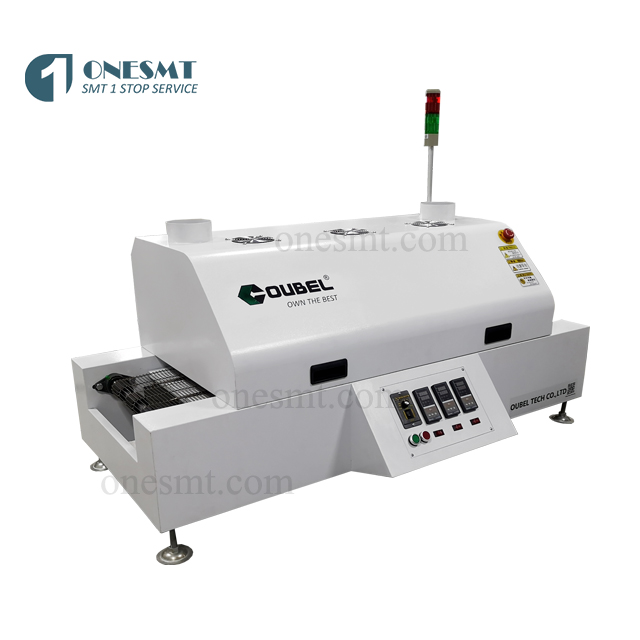

Desktop Mini reflow oven

Desktop Mini reflow oven

Desktop Mini reflow oven

LED Tube PCB Paste PrinterDual heads PCB/LED conformal coating machine

Desktop Mini reflow oven,suit for small production,with 3 heating zones.

Model: OB-R350
Brand: OUBEL
Delivery Time: 3-5 working days

Add to Wishlist
Compare
分类： , 标签： , , , ,

描述

Desktop Mini reflow oven

Specifications

ModelOB-R350
Dimensions1400*610*650mm

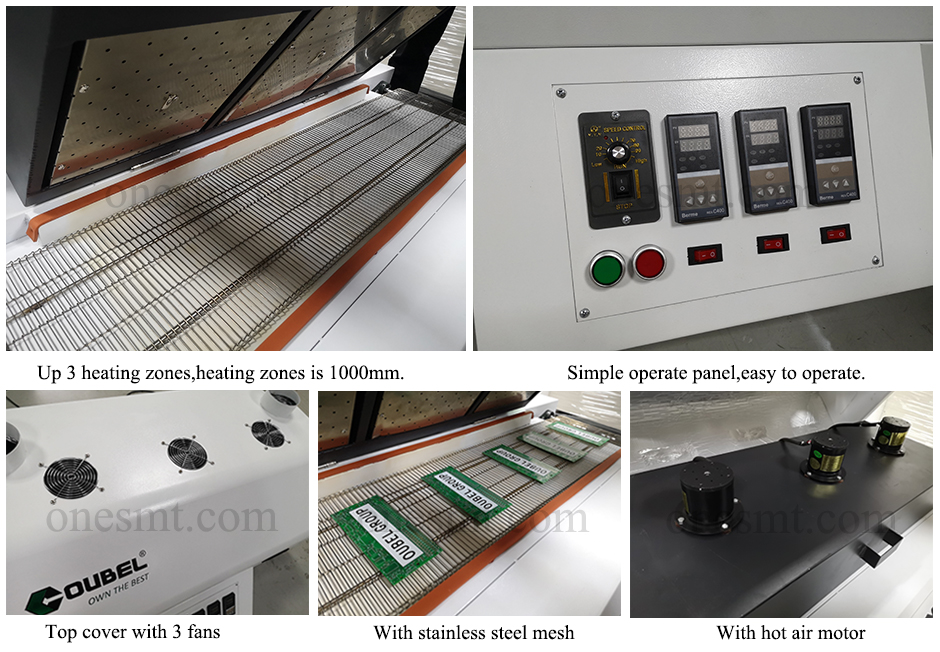

Heating zone quantityUp 3 down 0
Heating zone length1000mm
Heating methodHot air
Cooling zone qtyby cooling fan
PCB Max. widthMax.280mm
Conveyor directionL-R or R-L
Conveyor height880±20mm
Conveyor methodBy Mesh
Conveyor speed0-1500mm/min
Power3P 380V  or 1P  220V  50/60HZ
Start power5KW
Normal working powerApprox.1.5KW
Heating timeApprox.15minutes
Temperature control rangeRoom temperature -400℃
Temperature control methodPID +SSR
Temperature control precise ±1 ℃
PCB temperature  distribution deviation ±2 ℃
AlarmOver temperature
WeightApprox.60KGS
