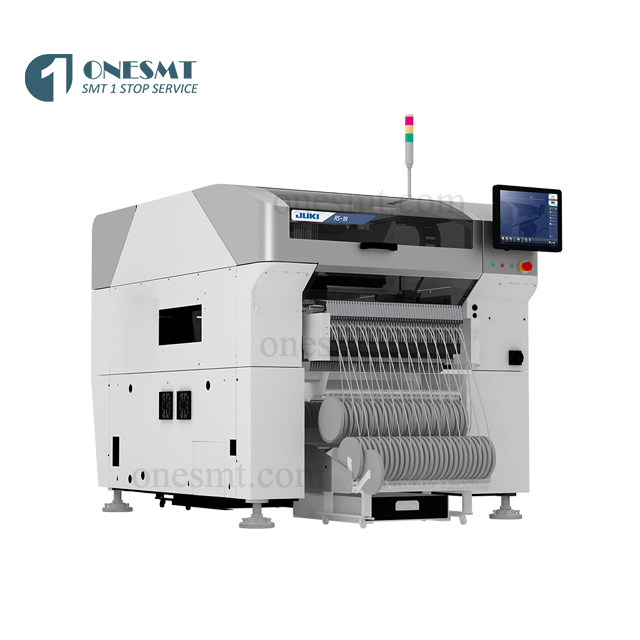

Fast Smart Modular Mounter JUKI RS-1R
Features
1.Class leading speed, up to 47,000 cph.
2.Newly developed “Takumi Head” with changing recognition sensor height.
3.Optimum line balance and highest throughput.
4.Wide component range from 0201 (metric) to large connectors and ICs.
5.Optimal for LED placement.
Specification
| Fast Smart Modular Mounter | |||||
|---|---|---|---|---|---|
| Model | RS-1R | ||||
| Conveyor specification | standard | 150mm conveyor extensions, upstream and downstream | 250mm conveyor extensions, upstream and downstream | ||
| Board size | minimum | 50×50㎜ | |||
| maximum | 1 buffer | 650×370 ㎜ （Single clamping） | |||
| 950×370 ㎜ （double clamping） | 1,100×370 ㎜ （double clamping） | 1,200×370 ㎜ （double clamping） | |||
| 3 buffers | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| Component height | 25㎜ | ||||
| Component size | 0201*1 ～□74 ㎜ /150×50 ㎜ | ||||
| Placement speed | Optimum | 47,000CPH | |||
| IPC9850 | 31,000CPH | ||||
| Placement accuracy | ±35μｍ（Cpk≧1） | ||||
| Feeder inputs | max.112*2 | ||||
*1 For metric 0201 compliance please contact us.
*2 Using RF(RF08AS) feeders
