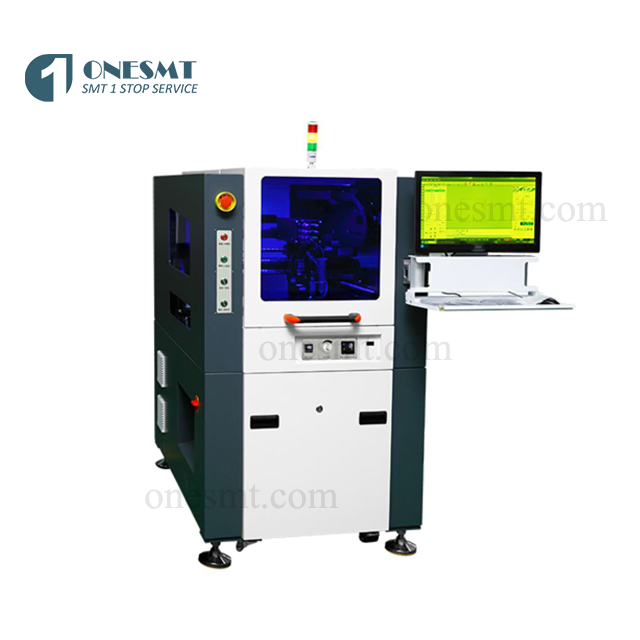

High-end automatic glue dispenser machine
Features
1.PC control, Windows XP operation system.Auto alarm and menu display function.
2.CCD visual position system.
3.Servo motor+ ball screw drive.
4.Automatic nzzle constant temp. system , which ensure the consistence of the glue flow.
5.Automatic clean system.
6.Offline or inline CCD programming is available.
7.Different types of nozzle are optional according to your glue type.
Analytical balance, pending board device, the workpiece heating device are optional.
Specifications
| Model | OB-HT700H | OB-HT900 |
| Dimensions | L700*W1260*H1600mm | L1200*W1260*H1600mm |
| Control method | Controller + IPC | Controller + IPC |
| Dispensing area | X=330mm Y=400mm Z=30mm | X=750mm Y=380mm Z=30mm |
| X.Y.Z driven method | Servo motor+ball screw | Servo motor+ball screw |
| Max. Running speed | 1000mm/s | 1000mm/s |
| Positioning accuracy | ±0.02mm | ±0.02mm |
| Repeat positionning accuracy | ±0.02mm | ±0.02mm |
| Nozzle | 1set | 1set |
| Nozzle heating | Room temp.-100℃ | Room temp.-100℃ |
| Communication port | SMEMA | SMEMA |
| Programming mode | Offline or inline visual programming | Offline or inline visual programming |
| Power | 1P 220V 50/60HZ | 1P 220V 50/60HZ |
| Air input | 6Kg/CM2 | 6Kg/CM2 |
| Total power | 2.4KW | 2.4KW |
| Weight | Approx.400KGS | Approx.800KGS |
| Optional | ||
| Analytical balance | Date reading accuracy 0.01mg | |
| Laser height measure | Automatic laser height detection and automatic height calibration for Z axis after change the product | |
| Workpiece heating device | Working zone heating,room temp-120℃±3℃ | |
