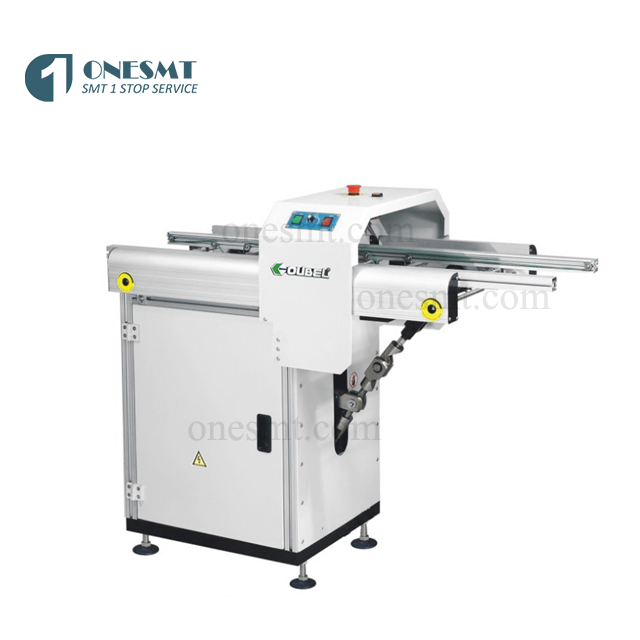

Lowering gate PCB conveyor
Features
1.Lowering and lifting of gate conveyor (controlled by push botton).
2.650mm passage way or specify.
3.Parallel and smooth width adjustment(leadscrew).
4.Safety sensor installed to enhance safety.
5.With SMEMA signal.
Specifications
| Model | OB-GC608-D |
| Dimensions | 1300*570*1050mm |
| PCB size | 50*50-445*350mm |
| Belt type | Round belt or flat belt |
| Conveyor speed | 0.5-20M/Min |
| Power | 1P AC 110V/220V |
| Air source | 4-6bar, 48L/min max. |
| Conveyor height | 900±20mm |
| Conveyor direction | L-R or R-L |
| Weight | Approx.180Kgs |
