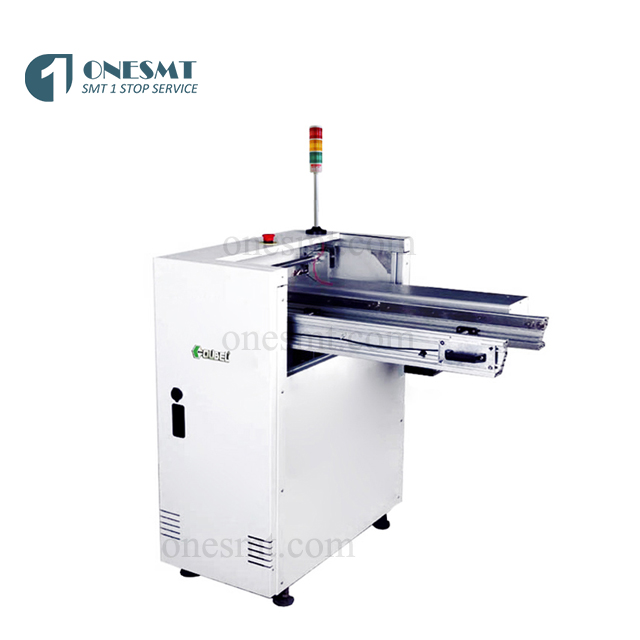

Manual lift gate PCB conveyor

Manual lift gate PCB conveyor

Manual lift gate PCB conveyor

Lowering gate PCB conveyorIR curing oven with touch screen

Manual lift gate PCB conveyor is used when a passage way is required in a production line.

Model: OB-GC608-U
Brand: OUBEL
Delivery Time: 4-10 working days

Add to Wishlist
Compare
分类： , 标签： , , , , , , , , , , , , , , , , , ,

描述

Manual lift gate PCB conveyor

Features：

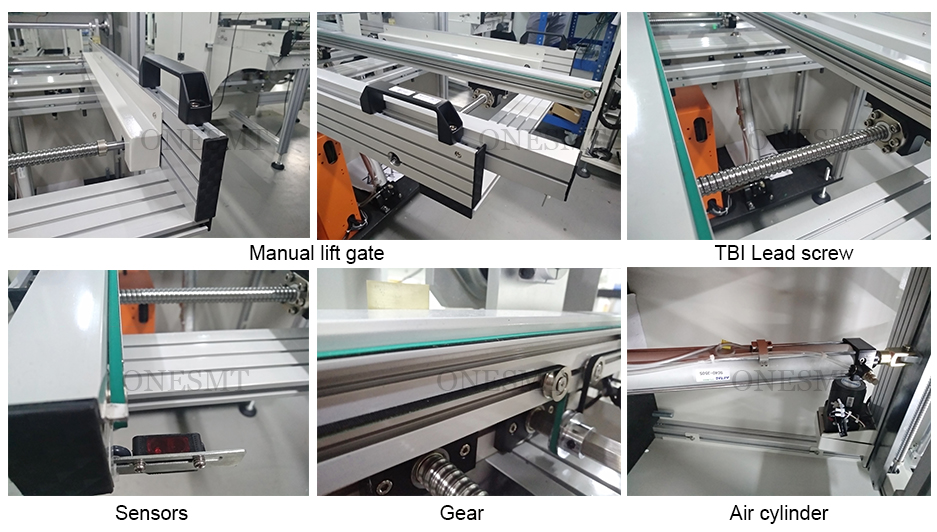

1.Cylinder assisted lifting motion.

2.With pneumatic lock to enhance safety.

3.650mm passage way or specify.

4.Parallel and smooth width adjustment (leadscrew).

5.Safety sensor installed to enhance safety.

6.With SMEMA signal.

Details：

Specifications:

ModelOB-GC608-U
Dimensions1000*730*1050mm
PCB size50*50-445*330mm
Belt typeFlat belt
Conveyor speed0.5-20M/Min
Power1P AC 110V/220V 100VA Max.
Air source4-6bar, 48L/min max.
Conveyor height900±20mm
Conveyor directionL-R or R-L
WeightApprox.180Kgs
