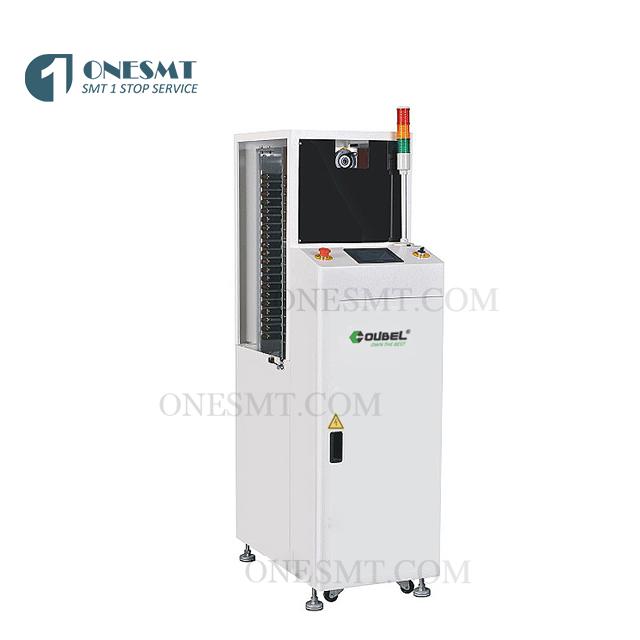

PCB buffer

PCB buffer

PCB buffer

Lead free SMT Reflow Oven with N28 zones reflow oven

PCB buffer is used between two SMD machine to buffer.With SMEMA.

Model: OB-MBC608
Brand: OUBEL
Delivery Time: 4-7 working days

Add to Wishlist
Compare
分类： , 标签： , , , , , , , , , , , , , , , , , , , , , , , ,

描述

PCB buffer

Features:

1.PLC+LED touch screen control, easy to operate.

2.Use durable rollers for transmission (No need change belts)。

3.Three modes of operation:FIFO （ first in first out）,LIFO （ last in first out）, PASS.

4.Smooth and precise width adjustment (leadscrew).

5.Fast, smooth and precise search and location.

6. Full closed design ensures safety level of operation。

7.With SMEMA.

Details:

Specifications:

ModelOB-MBC608
DiscriptionIt is used between two SMD machine to buffer.
Dimensions610*1100*1250mm
PCB size50*50-530*460mm
Circle timeAbout 10s
PCB capacity25pcs( or customized)
Power1P AC 110V/220V 50/60HZ
Power sourceMax.250VA
Conveyor height900±20
Conveyor directionL-R or R-L
WeightApprox.260KGS
