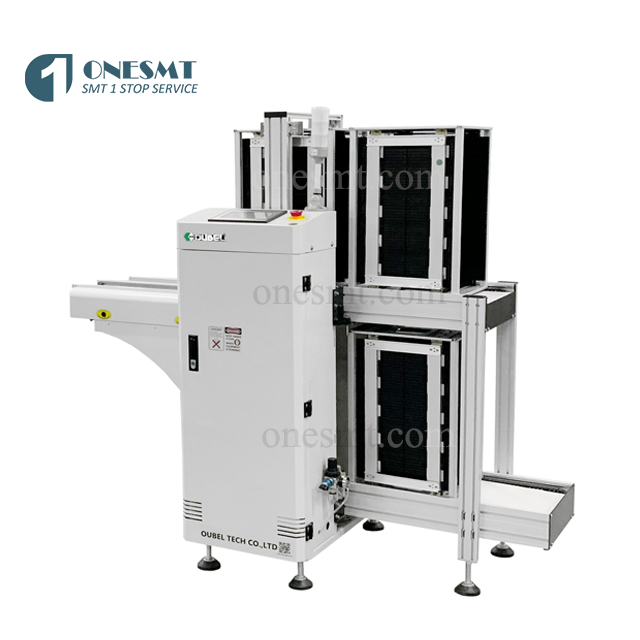

PCB magazine unloader

PCB magazine unloader

PCB magazine unloader

Desktop auto soldering robotPCB magazine loader

PCB magazine unloader is used for unloading PCBs automatically in SMT&DIP production lines.Panasonic PLC+ touch screen controller.Pitch choose automatically (10.20.30.40mm).Size is customized. With SMEMA signal.

Model: OB-UL718
Brand: OUBEL
Delivery Time:4-10 working days

Add to Wishlist
Compare
分类： , 标签： , , , , , , , , , , , , , , , , , ,

描述

PCB magazine unloader

Features:

1.Applies to the PLC+touch screen controller.

2.Strong ,firm and stable design.

3.Up&down pneumatic clamps to ensure the magazine rack position.

4.Special gas circuit design to ensure no PCB breakage.

5.With SMEMA signal.

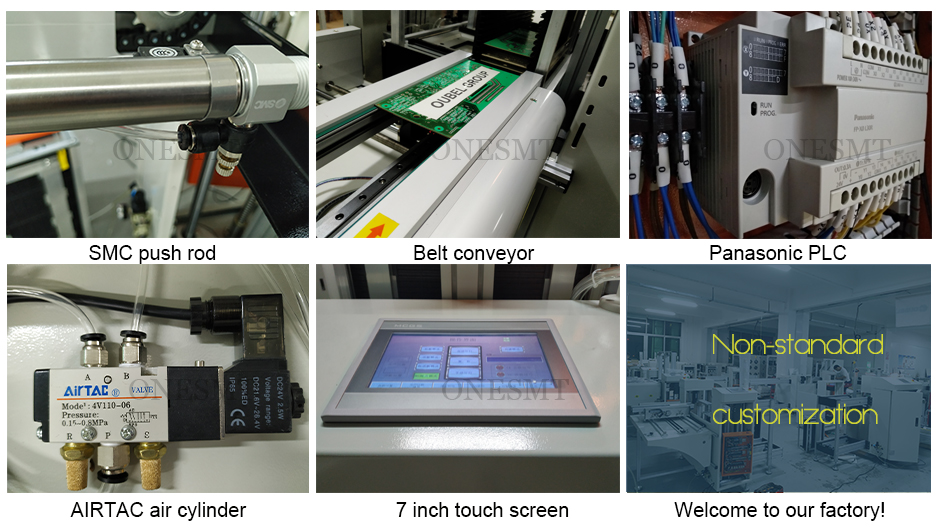

Details:

Specifications:

ModelOB-UL718OB-UL718LOB-UL718XLOB-UL718XXL
Dimensions1730*765*1250mm2070*845*1250mm2660*909*1250mm2660*970*1250mm
Magazine size355*320*563mm460*400*563mm535*460*570mm535*530*570mm
PCB size350*50-250mm455*50-330mm530*50-390mm530*50-460mm
PowerAC 110V/220V 50/60HZ
Air supply5kgf/cm2
Transport height900±20(mm)
PCB height0.4-8(mm)
Transport directionL-R or R-L (optional)
Up/down pitches10-100(mm)
CommunicationSMEMA signal
Repeatability0.05(mm)
WeightApprox. 260KGSApprox. 280KGSApprox. 300KGSApprox. 320KGS
