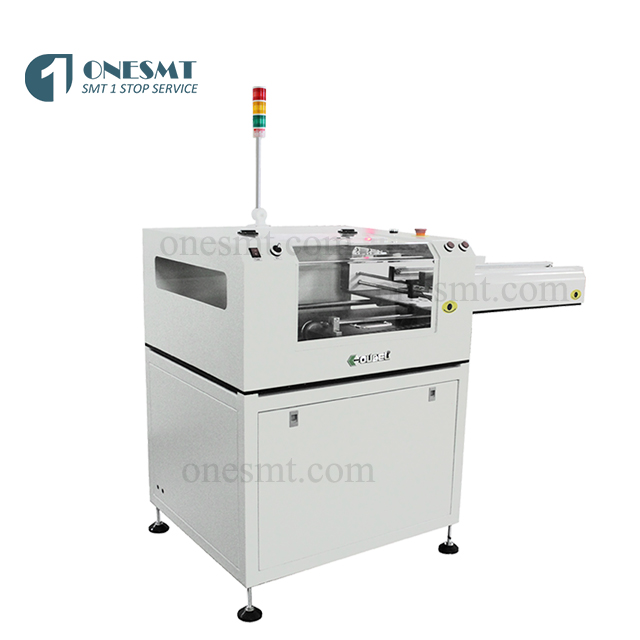

PCB Telescopic Conveyor

PCB Telescopic Conveyor

PCB Telescopic Conveyor

Automatic PCB elevatorIR curing oven

PCB Telescopic Conveyor is used when a passage way is required in a production line (fully automatic).

Model: OB-C608T
Brand: OUBEL
Delivery Time: 7-10 working days

Add to Wishlist
Compare
分类： , 标签： , , , , , , , , , , , , , , , , , , ,

描述

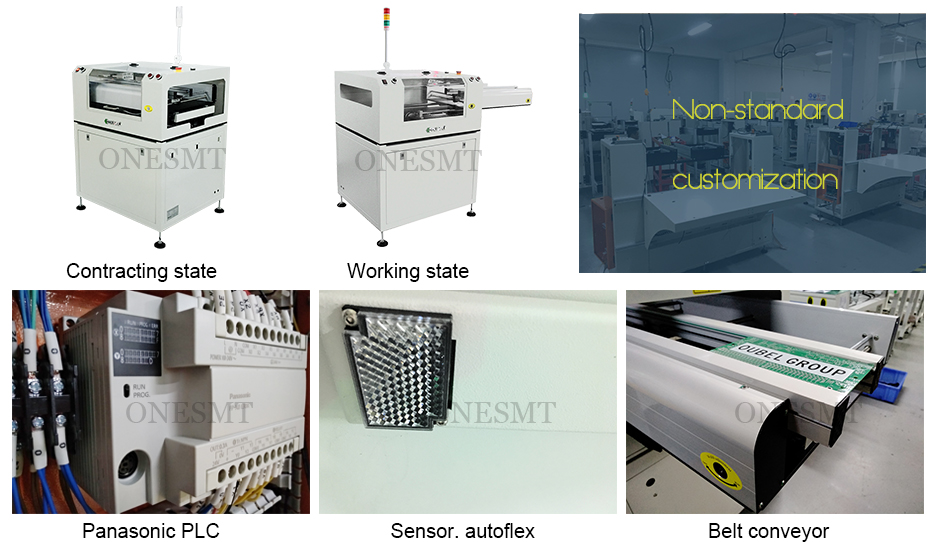

PCB Telescopic Conveyor

Features：

1.Full closed design ensures safety level of operation.

2.Smooth and precise width adjustment (leadscrew).

3.Fast, smooth and precise search and location.

4.Top cover can be opened, easy to maintenance.

5.SMEMA signal.

Details：

Specifications:

ModelOB-C608T
Dimensions1500*900*1300
PCB size50*50-440*400mm
Conveyor speed0.5-20M/minute
Belt typeESD belt
Power source1P AC 220V 50/60HZ
Conveyor height900±20(mm)
Conveyor directionL-R or R-L (optional)
WeightApprox.280KGs
