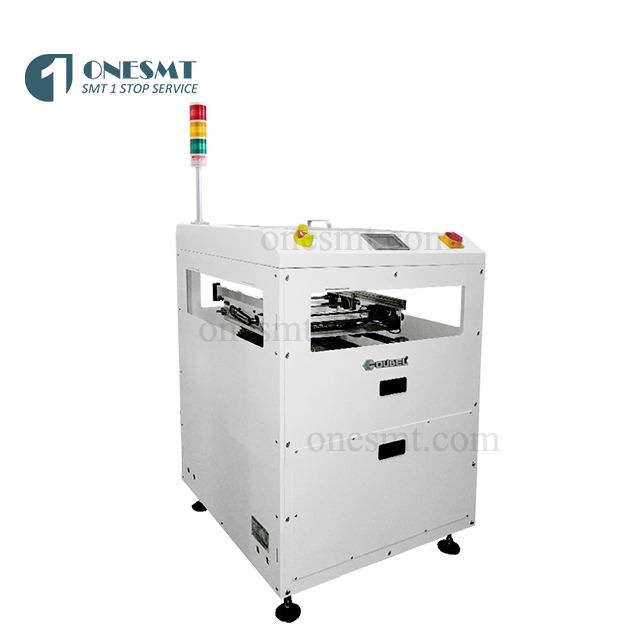

PCB Turn conveyor

PCB Turn conveyor

PCB Turn conveyor

Automatic PCB invertorPCB shuttle conveyor

PCB Turn conveyor is used to redirect PCBs flow into different channels in a production line.(90°,180°,270°)

Model: OB-TC608
Brand: OUBEL
Delivery Time: 4-7 working days

Add to Wishlist
Compare
分类： , 标签： , , , , , , , , , , , , , , , , , , , ,

描述

PCB Turn conveyor

Features:

1.User friendly “soft touch” LED membrance control panel or touch screen is optional.

2.Enclosed design with built in torque limiter ensures highest level safety.

3.Top cover can be opened, it’s easy to make maintenance.

4.Smooth and parallel width adjustment (leadscrew).

5.Steady and precise rotation(Step motor).

6.Minimize transmission clearance between conveyor.

7.With SMEMA signal.

Details:

Specifications:

ModelOB-TC608
Dimensions500*563*1200mm
PCB size50*50-330*250mm
PCB thicknessMin.0.6mm
Conveyor height900±20mm
Conveyor directionL-R or R-L (optional)
Rails fixedFront fixed or Back fixed
Cycle timeApprox.18s
Power supply1P 110V/220V 50/60 HZ
Power consumptionMax.300VA
Air source4-6bar,10L/min max.
CommunicationSMEMA signal
WeightApprox.180Kgs
