Rotary blade wire stripping machine

Rotary blade wire stripping machine
Rotary blade wire stripping machine - Image 2

Rotary blade wire stripping machine

Wire split and brush machinePanasonic Feeder Loading Jig

Model: OB-WS028
Brand: OUBEL
Delivery Time: 2-5 working days

Add to Wishlist
Compare
分类： , 标签： , , , , , , , , , , , , , , , , , , , , , , , ,

描述

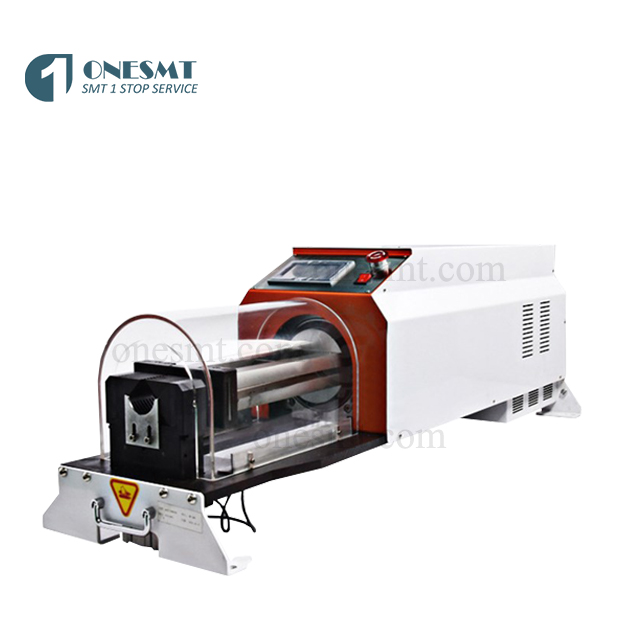

Rotary blade wire stripping machine

Features：

  1. High-precision rotation, maximum wire diameter 50mm ;
  2. Strong peeling, Max 300mm length;
  3. Economic;
  4. New energy DC cable special equipment;
  5. For special difficult processing cable,adopt special axis positioning and double totary blade;
  6. Mechanical size: 1400mm × 350mm × 430mm

Specifications：

Control System
Dedicated controller
Stripping method
Rotary peeling
Stroke
0-100mm
Voltage
220V 50-60HZ /110v
Air pressure
0.5-0.7Mp
Power
100W
Cut the middle of stripping:
11
Core cross-section cut-line:
0.1~8mm2
Stripping diameter
ø10-ø25mm
Stripping tolerance
±0.2
Speed
20-40pcs/min
Size
1000x450x350mm
Weight
80Kg
