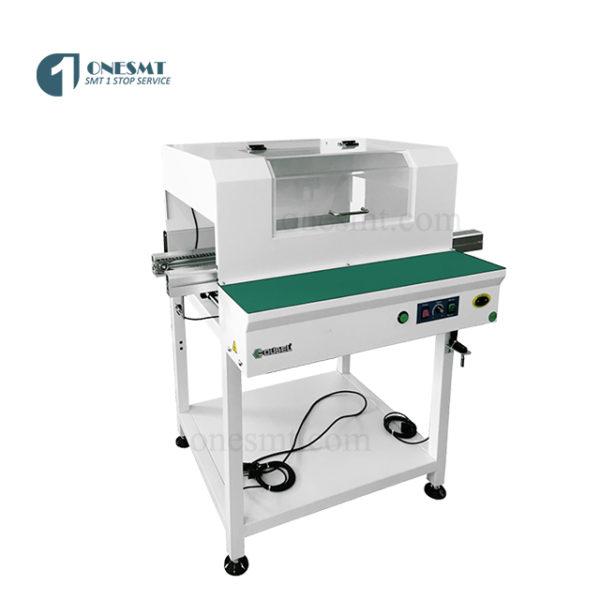

UV Inspection Conveyor
Features:
1.Modular design.
2.Bottom weighted design improves running stability.
3.Inspection mode and automatic mode.
4.Speed is adjustable.
5.Size is customized.
6.With UV light
7.With SMEMA.
8. With bottom cabinet.
Note: Machine can be customized according to your requirement. Such as length, width, PCB stop pieces , with touch screen, Auto width adjustment…
Application:
This PCB UV conveyor is used after the conformal coating machine. It inspect the coating result use the UV light .
OBSMT can make the whole sollution of the conformal coating line.
*Auto Loader–PCB chain conveyor–Selective Conformal coating machine –PCB UV conveyor –Curing oven –PCB conveyor –Auto unloader
*PCB chain conveyor –Whole board conformal coating machine–PCB UV conveyor –Curing oven–PCB chain  conveyor
Specifications:
| Model | OB-UC608F |
| Dimensions | Length*1050*900mm |
| PCBÂ width | 50-350mm |
| PCB direction | L-R or R-L(optional) |
| Conveyor type | By stainless steel chain |
| Conveyor speed | 0.5-20M/min |
| Power | 1PÂ ACÂ 110V/220VÂ 50/60HZ |
| Conveyor height | 900±20mm |
| Weight | Approx.100Kgs |
More information, welcome to contact us to get the latest quotation and video!
