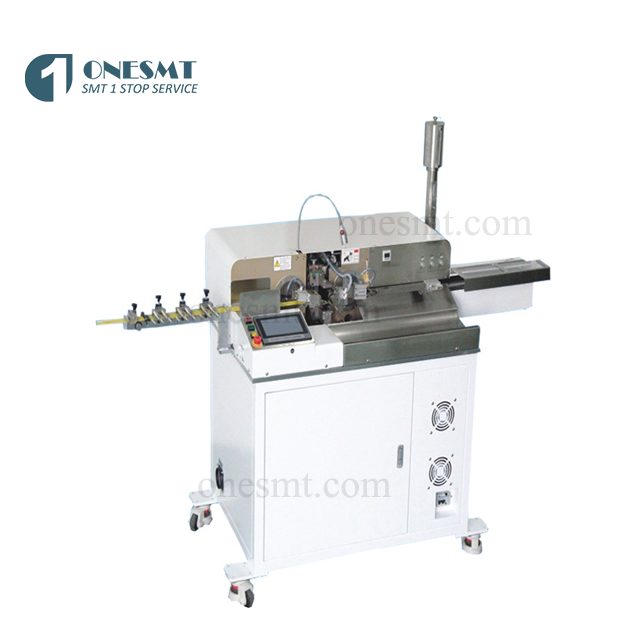

Wire Stripping and Soldering Machine
Features
1.The machine adopts Panasonic servo motor: (6 sets)
2.Pneumatic components: solenoid valve cylinder + + trachea (SMC)
3.Pressure Detection: SMC
4.Screw, rail: Taiwan Hiwin
5.Controller: United States RAM
6.The color touch screen: KINCO (Taiwan)
7.Full CNC Commissioning: incision size, strip length, wetting depth
Specifications
| Power supply | Single-phase AC220/50Hz/60HZ |
| Features | Wire cutting, single-ended crimp, double-ended peeling single-ended semi-stripping, twisting single-ended line, single-ended soldering. |
| Wire processing range | 20AWG-32AWG |
| Capacity | 10000PCS/H(6PCS/Once) |
| Cutting length | 9-420MM |
| Peeling length | 0-6MM |
| Twisted wire length | 3-6MM |
| Soldering length | 0.5~6mm |
| Air pressure | 5~6KG |
